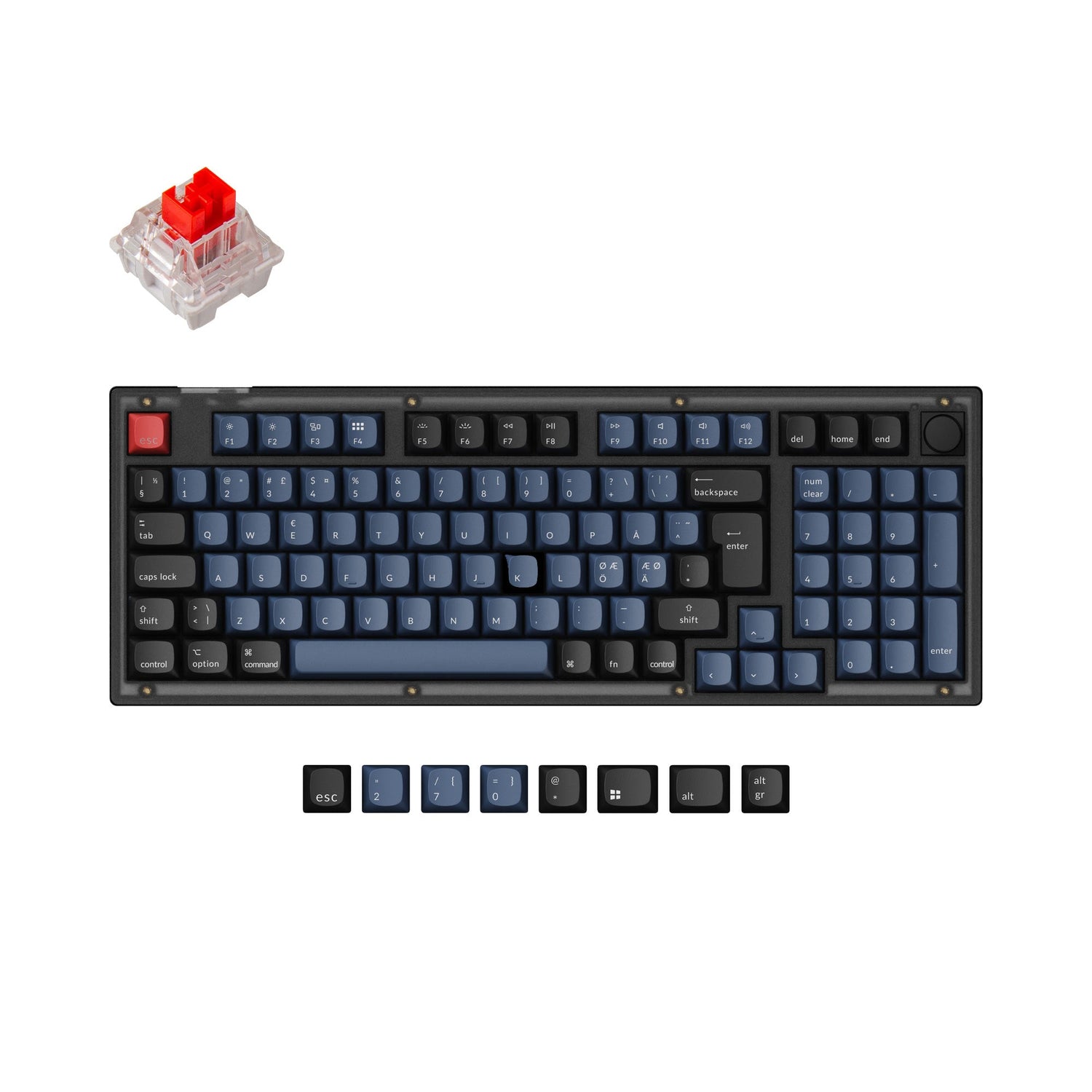

Keychron V5 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron V5 QMK Custom Mechanical Keyboard ISO Layout Collection - Fully Assembled Knob (Frosted Black) / Swiss-ISO / Keychron K Pro Red är restbeställd och skickas så fort den finns i lager igen.
Det gick inte att ladda hämtningstillgänglighet
- ABS-plastkåpa
- Tangentbordets PCB, inskruvade stickor och stålplåten
- OSA-profil ABS genomlysande knappsatser (inklusive Mac- och Windows-knappsatser)
- Keychron K Pro-brytare
Inga rabattkoder kan användas för V5. Vänligen skicka din e-post på "Meddela mig när tillgänglig" om produktmodellen är slut i lager.
Keychron V5 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron V5
ISO Layout Collection
With an 1800 compact layout design (96% layout) to save your space efficiently while retaining the function keys and num pad, V5 is a fully customizable mechanical keyboard with QMK/VIA support, backlight shine-through keycaps, screw-in stabs, and more for your optimal typing feel.
Choose the keycaps, switches and more accessories for your V5 ISO layout keyboard
Keychron V5 ISO Layout Versions
These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.
🇨🇭 Swiss-ISO Layout
🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout
🇩🇪 German DE-ISO Layout
🇬🇧 UK-ISO Layout
🇫🇷 French-ISO Layout
🇪🇸 Spanish-ISO Layout
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.
Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the V5 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V5 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program V5 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
Programmable Knob
Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the V5's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V5 also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 142.3 mm |
|---|---|
| Length | 388.87 mm |
| Front Height | 18.85 mm (without keycaps) |
| Back Height | 26.43 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 3.5° / 7.20° / 9.73° |
| Weight | 1170 ± 10 g |
| Body Material | ABS Plastic |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Mount Style | Tray Mount Design |
| Keycaps (Fully Assembled Version) | OSA Profile ABS backlight shine-through keycaps |
|---|---|
| Switches | Keychron K Pro |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
| Layout | DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO |
Learn more about the Keychron V5 such as the V5 shortcuts, assembling the V5, factory reset, and more in the FAQ section.
